Good Quality Off-line Selective Wave Soldering Machine SS340 for PCB China

Overview

Selective wave soldering is a special form of wave soldering invented to meet the development requirements of through-hole components soldering. It is mainly suitable for the soldering of through-hole components in high-end electronic products. For example: military electronic products, automotive electronics, switching power supply products and other industries which require higher soldering reliability.

I.C.T SS330 selective wave soldering is a high performance equipment developed and assembled in China.

330 Selective Wave430 Selective Wave

Features:



1, The piezoelectric ceramic jet valve originated in Germany is selected, which is suitable for flux with solid content less than 5%,computer control or manually adjust switch, precise control the spray time, spray speed, economy and environmental protection, digital FLUX flow, spray flow, angle, density, width and other parameters can be recorded.

2, User-friendly design: fault detection (such as heaters abnormal alarm, etc.), regular maintenance reminders,economy functions, emergency manual transmission function and tool-free maintenance, reduce equipment failure rates.

3, Core components: using imported components to ensure long-term stability of equipment operation.

4, It can control the solder quantity, soldering time and solder quantity of each solder spot.

5, Program creation is simple, using pictures or Gerber data to make production program.

6, Nozzle can be selected according to the size of soldering point, and there is no need for fixture to protect non solder parts.

7, PCB pictures can be directly used for path programming. The path starting point, soldering moving speed, empty stroke speed, z-axis height and wave crest height can be set on the computer.



flux spraying

              Flux Spraying               +                Preheating                  +                  Soldering



Flux system

Flux system

1. The piezoelectric ceramic jet valve originated in Germany is selected, which is suitable for flux with solid content less than 5%.

2.Flux is stocked by pressure tank, make sure pressure stable without influenced of amount of flux. The nozzle jam detection function is optional.

Preheat system

Preheat system

Bottom preheating is standard equipped in machine, Position is adjustable.IR heater of Top,Efficient and stable IR heat conduction.Design structure for maximizing preheating area.All round high temperature cotton design to ensure temperature stability.Heat-generating and heat-conducting parts and motors adopt top brands.Maintenance plug-in design. tool-free maintenance mode.

Soldering system

Soldering system

1.XYZ platform is composed of high precision ball screw and high-speed motor.

2.Electromagnetic pump coil adopts German imported brand to ensure the stability and reliability of the peak.

3.Solder temperature, N2 temperature, wave height, wave calibration etc all able to set in software.

4.Solder pot is made of Ti, not leakage. With cast iron heater outside, robust & quick heat up.

5.N2 online heating system, to wet the soldering perfectly and reduce the solder dross.

6.Standard with the nozzle automatic cleaning function. How many panels can be set to clean the nozzle.



Specifications:
On-line Selective Wave Soldering Machine
Model I.C.T SS540 I.C.T SS550
Flux Storage Tank 1 L 3 L
Max PCB Size 500*400mm 500*500mm
PCB Top Clearance 100mm
PCB Weight <8Kg <10Kg
N2 Purity of N2: 99.998%, 0.3~0.4 MPa,25 L/min,Outer diameter Φ6mm
Dimension L1520*W1650*H1650mm L2860*W1650*H1650mm
Weight Approx:1200kg Approx:1600kg
Off-line Selective Wave Soldering Machine
Model I.C.T SS330 I.C.T SS430
Flux Storage Tank 1 L
Max PCB Size 350*300mm 400*300mm
PCB Top Clearance 100mm 50mm
PCB Weight <5Kg
N2 Purity of N2: 99.998%, 0.3~0.4 MPa,25 L/min,Outer diameter Φ6mm
Dimension L830*W1350*H1430mm L1280*W1400*H1650mm
Weight Approx:380kg Approx:420kg



FAQ



Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.



Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.



Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.



Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.



Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.



Q:  Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.

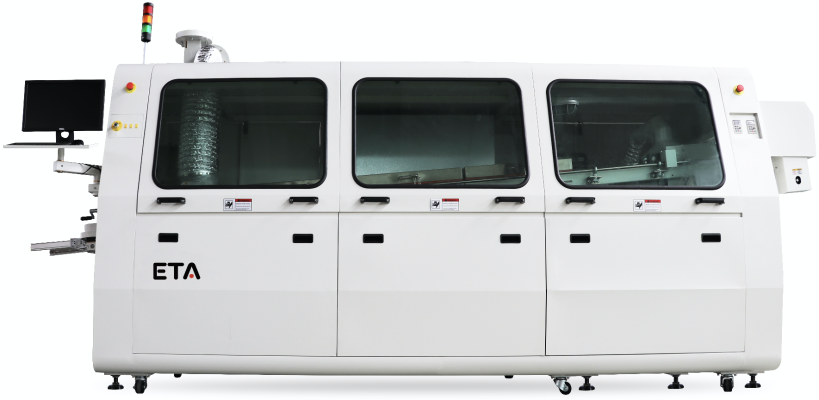

ETA & MARS Wave Soldering Machine Acrab Series

Wave Soldering Machine

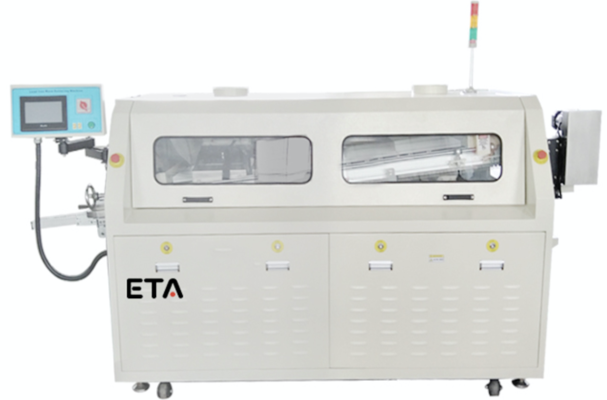

High Quality DIP Wave Solder Machine W4

Wave Soldering Machine

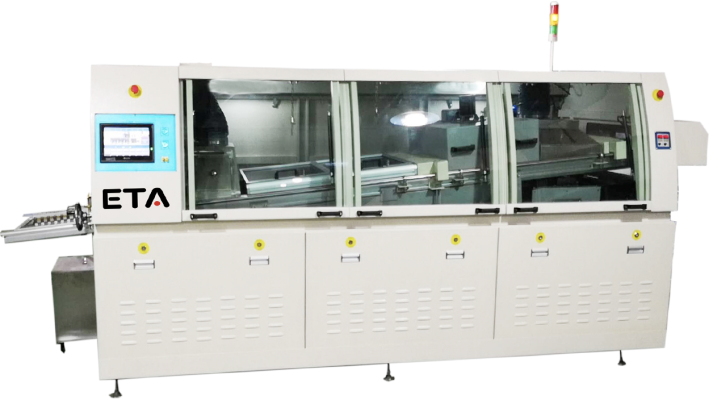

High Performance THT Wave Soldering W3

Wave Soldering Machine W3

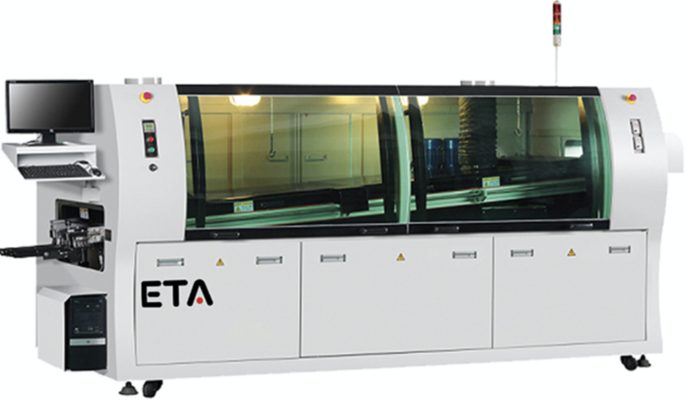

High cost performance Wave Soldering Equipment W2
