1.Nozzle: Japan Kuroda Seiko nozzles, adjustable atomizing area, ensuring the long time spray uniformity and reliability.
2.Spray control: computer control or manually adjust switch, precise control the spray time, spray speed, economy and environmental protection, digital FLUX flow, spray flow, angle, density, width and other parameters can be recorded.
5.Products comply with CE, CCC, UL and other standards and specifications.
6.User-friendly design: fault detection (such as heaters abnormal alarm, etc.), regular maintenance reminders,economy functions, emergency manual transmission function and tool-free maintenance, reduce equipment failure rates.
7.Heating module: horizontal reflow design makes each heating zones not influenced by adjacent zones to ensure accurate temperature curve, while ensuring high production capacity and heat exchange capacity, and achieve high adaptive capacity (to meet the soldering of automotive electronics, communications, electronics, computers and mobile phones, and other consumer electronics.).
8.Moving parts: Computer adjustment, stepper motor control, accuracy and stability, to ensure accurate spray.
10.Core components: using imported components to ensure long-term stability of equipment operation, reduced maintenance costs. 11.Can choose different configurations of flux processing system, to ensure the furnace hall clean.
12.Closed-loop transmission speed control systems, transportation control accuracy ± 2mm / min, ensuring speed more stable.
13.Dross Collection: Automatic dross return channel,the most energy-efficient channel design.

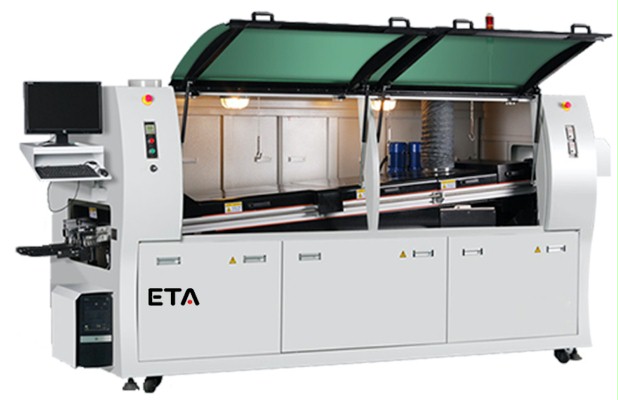

❙ Specification of Wave Solder Machine
Model
W4
W3
W2
Dimension:(mm)
4200X1250X1500
3600X1250X1500
2900X1160X1500
Weight(kg)
Approx.1500kg
Approx.1200kg
Approx.790kg
Power Supply
3P5W,380/220V 50Hz
3P5W,380/220V 50Hz
3P5W,380/220V 50Hz
Startup Power
32kw
24kw
16kw
Operation Power
12kw
9kw
7kw
Control System
PLC
Spray System
Transmission Method
Step motor
Spray Pressure
0.25Mpa--0.4Mpa
lux flow
10--100ml/min
Exhaust Diameter
Φ200mm
Exhaust Capacity
25m3/min
Preheating System
Preheating Mode
Hot air
Control Mode
PID + SSR
Preheating Zone
4
3
2
Preheating Length
1800mm
1600mm
1200mm
Preheating Temp.
(Room Temperature)-250°C
Warm-up Time(min)
Approx.15min (setting 150°C)
Conveyor System
PCB Size:LxW(mm)
Min:80x60mm; Max:400x300mm
Conveyor Speed
0-2000(mm/min)
Conveyor Height
750+/-20 (mm)
Finger
Double hook claw (Standard)
Conveyor width control
Manually
Conveyor Angle
4~7degree
Soldering System
Solder Pot style
MechanicalMotor drive
Solder Pot Material
Full Titanium (Standard FT)
Solder pot temperature
300°C
Solder pot capacity
Lead-free 350kg
Lead-free 300kg
Lead-free 250kg
Other
Finger cleaning system
Brush
