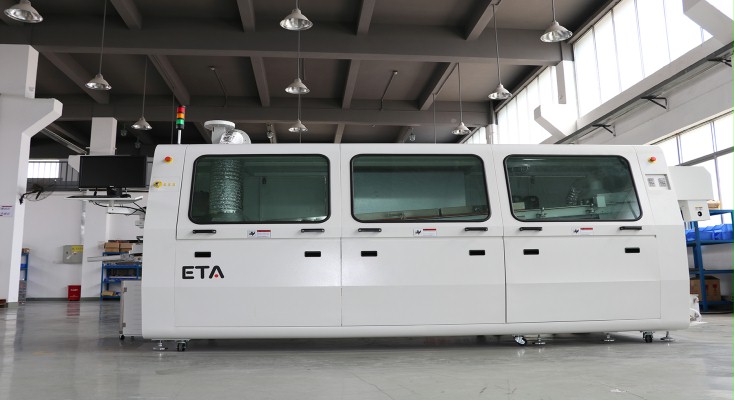

THT Wave Solder Machine Acrab350
❙ Introduce of Wave Solder Machine
Professional to provide large and small lead-free wave soldering equipment, THTwave soldering machine, automatic wave soldering manufacturers, to provide customers with quality products and solutions.
1.Nozzle: Japan Kuroda Seiko nozzles, adjustable atomizing area, ensuring the long time spray uniformity and reliability.
2.Spray control: computer control or manually adjust switch, precise control the spray time, spray speed, economy and environmental protection, digital FLUX flow, spray flow, angle, density, width and other parameters can be recorded.
5.Products comply with CE, CCC, UL and other standards and specifications.
6.User-friendly design: fault detection (such as heaters abnormal alarm, etc.), regular maintenance reminders,economy functions, emergency manual transmission function and tool-free maintenance, reduce equipment failure rates.
7.Heating module: horizontal reflow design makes each heating zones not influenced by adjacent zones to ensure accurate temperature curve, while ensuring high production capacity and heat exchange capacity, and achieve high adaptive capacity (to meet the soldering of automotive electronics, communications, electronics, computers and mobile phones, and other consumer electronics.).
8.Moving parts: Computer adjustment, stepper motor control, accuracy and stability, to ensure accurate spray.
10.Core components: using imported components to ensure long-term stability of equipment operation, reduced maintenance costs.
11.Can choose different configurations of flux processing system, to ensure the furnace hall clean.
12.Closed-loop transmission speed control systems, transportation control accuracy ± 2mm / min, ensuring speed more stable.
13.Dross Collection: Automatic dross return channel,the most energy-efficient channel design.
❙ Specification of Wave Solder Machine
Specifications
Acrab 350
Acrab 450
Dimension(mm)
4420X1420X1750
4420X1520X1750
Power Supply
3P5W,380/220V 50Hz
3P5W,380/220V 50Hz
Startup Power
33kw
33kw
Operation Power
8kw
8kw
Control System
PC+PLC
PC+PLC
Preheating Zone
3
3
Preheating Length
1800mm
1800mm
Preheating Temp.
(Room Temperature)-250°C
(Room Temperature)-250°C
PCB Width(mm)
50-350mm
50-450mm
Finger
Spring Pressing Finger (Standard); Option:Spring Pressing Finger, Duck Mouth Finger
Solder Pot Capacity
Lead-free 500kg
Lead-free 500kg
Machine Weight(kg)
Approx.1600kg
Approx.1900kg
