Mid-sized Lead-free Wave


Zoom

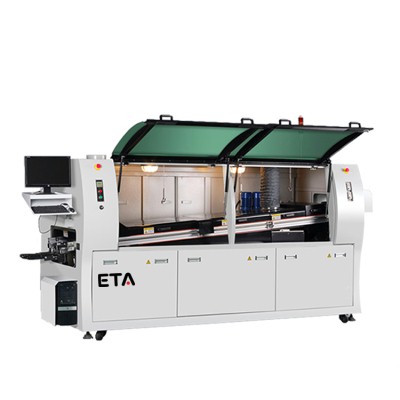

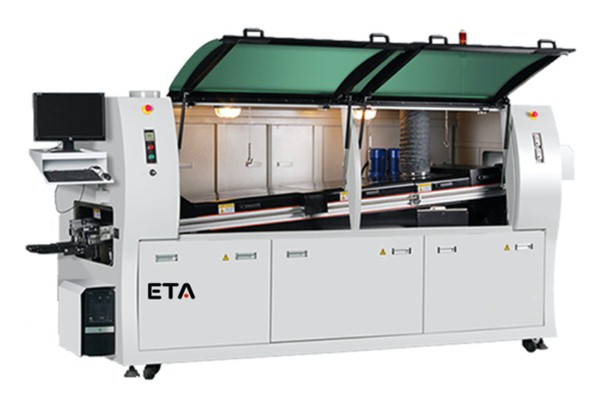

Name: Mid-sized Lead-free Wave
Name: Wave soldering machine
Model: Mid-sized Lead-free Wave
Brief:

Mid-sized Lead-free Wave,An optional center PCB support rail can be added to maintain planarity and to prevent sagging of oversize boards through the wave module.

Details

Two Independently Controlled Convection Preheating Zones
After flux application, boards enter a two-zone high-capacity forced hot air convection preheat with independent zone temperature controls to allow precise thermal profiling for proper flux activation and optimal solder wetting as assemblies enter the wave module.

If additional profiling control is needed, or for assemblies sensitive to top and bottom side temperature differential, a top-side preheater can be added at minimal cost.
Easy Conveyor Adjustment Reduces Setup Time and Ensures Process Repeatability
Motorized conveyor width adjustment, from 50-400 mm (2"-15.75"), is standard on all 28.400 wave soldering equipment, dramatically reducing setup time and eliminating operator inconsistency.

An aluminum-alloy pin-type conveyor input mechanism feeds the dual-titanium-finger conveyor, which includes a built-in finger cleaner, closed-loop speed control and overload protection.

Conveyor angle is adjustable from 4° - 7° and nominal speed setting is variable from 0.5-2.2 m/min (20"-87"/min) for maximized throughput.

An optional center PCB support rail can be added to maintain planarity and to prevent sagging of oversize boards through the wave module.
